SONO M2 Slimline Portable Moisture Probe
Slimline probe for deeper penetration into a stockpile. Telescopic extension reaches two metres.
- Reaches past the dry crust into representative material
- Telescopic extension for deep piles and bin sampling
- Same display unit as the rest of the portable range
A reach problem, not a material problem
The M2 is not for different material. It reads the same sand, gravel and crushed stone as the M1. It exists because sometimes the material you need to measure is not within arm's reach of the surface.

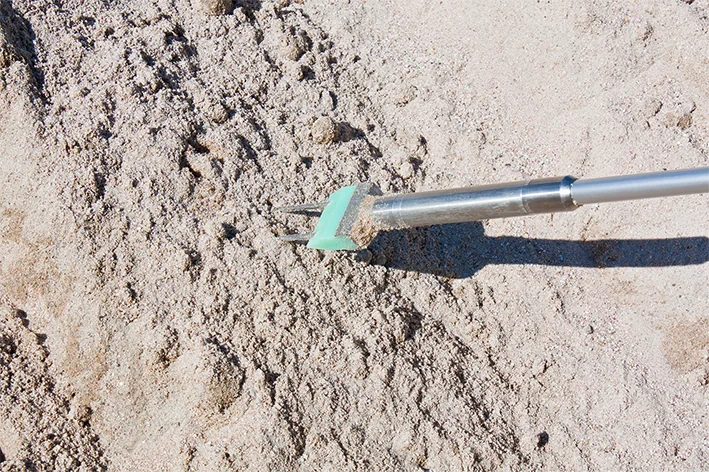

A slimline body penetrates deeper into a pile with less resistance, and the telescopic extension takes that to two metres.
When depth is the whole question
Stockpiles stratify. Water drains down and collects toward the base, sun dries the crown, and the working face is different again. A reading taken at whatever depth is convenient describes whatever depth is convenient.
Where a plant is drawing from deep in a pile, or checking a bin from a walkway, or sampling material that is simply not accessible near the surface, reach stops being a convenience and becomes the difference between a representative number and a meaningless one.
The extension also has a safety dimension. Reaching two metres in from where you are standing is preferable to climbing a stockpile to get a reading.
The same measurement, further in

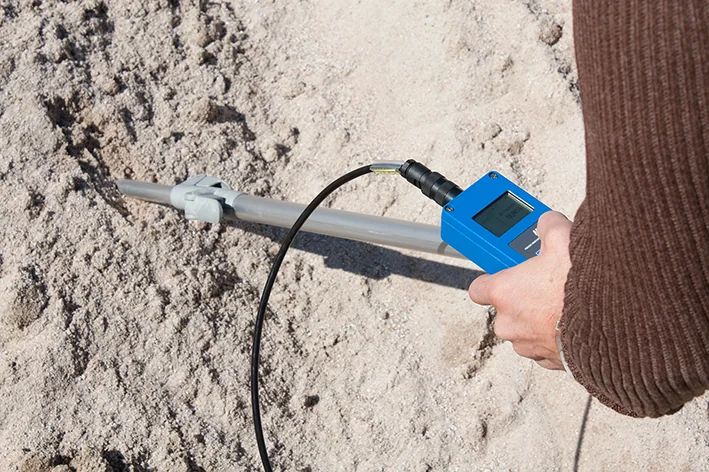

TDR electronics are integrated in the probe as with the rest of the range, and the M2 runs on the same HD2 display and the same SONO DIS as the other portable probes. The measurement behaves identically — layer-by-layer through the material volume, unaffected by abrasion, no recalibration on wear.
SONO M2 technical data
Materials: Sand, gravel, crushed stone
| Measurement technology | TRIME TDR |
|---|---|
| Body | Slimline, integrated TDR electronics |
| Reach | Telescopic extension up to 2 m |
| Display | HD2 or SONO DIS |
SONO M2 — frequently asked
How far does the telescopic extension reach?
Up to two metres.
Does the M2 measure different materials than the M1?
No — sand, gravel and crushed stone, the same as the M1. The difference is the slimline body and the reach, not the material range.
Which display does it use?
The HD2 mobile display, or the SONO DIS ruggedized display which also works with the SONO WZ.
Confirm the SONO M2 fits your material
Send your material, particle size and installation point. We will confirm the probe, the calibration and the output configuration before you order.
